Truss Terminology

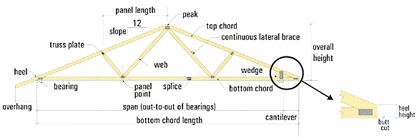

The terms below are typically used to describe the various parts of a
metal plate connected wood truss. The truss profile, span, heel height,
overall height, overhang and web configuration depend on the specific
design conditions and will vary by application.

  Truss Configurations
The following examples represent some of the possible variations on the
basic types of trusses. The only limit to the design is your imagination.
